BTO and CBT Anti-rust Galvanized Concertina Razor Wire for Farm or Prision or Airport

Anti-rust Galvanized Concertina Razor Wire Core Wire Diameter: 2.7±0.1mm

The Hot Dipped Galvanized BTO-22 Razor Barbed Wire

1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire

2. Core Wire Diameter: 2.7±0.1mm

Razor Barbed sheet thickness: 0.5±0.05mm

3. Razor Loop Diameter:

300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.

450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes

4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)

5. Meters of per coil Razor Barbed Wire:

Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them.

Concertina Coil Specification
Coil Diameter300mm450mm730mm 730mm980mm980mm1250mm
 (12inch)(18inch)(28inch)(36inch)(36inch)(36inch)(50inch)
Recommended Stretch Length4m10m15-20m10-12m10-15m8m8m
Coil Diameter When Stretched260mm400mm600mm620mm820mm850mm1150mm
Spiral Turns Per Coil3354/5554/5554/5554/5554/5554/55
Clips Per Spiral3335579

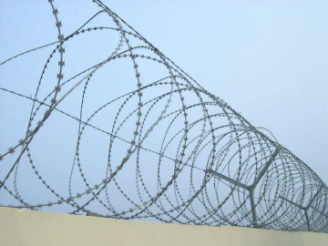

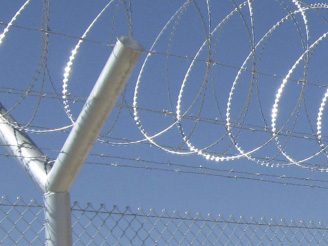

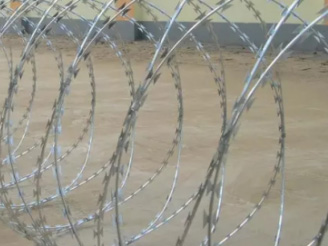

n1.jpg n2.jpg n3.jpg
